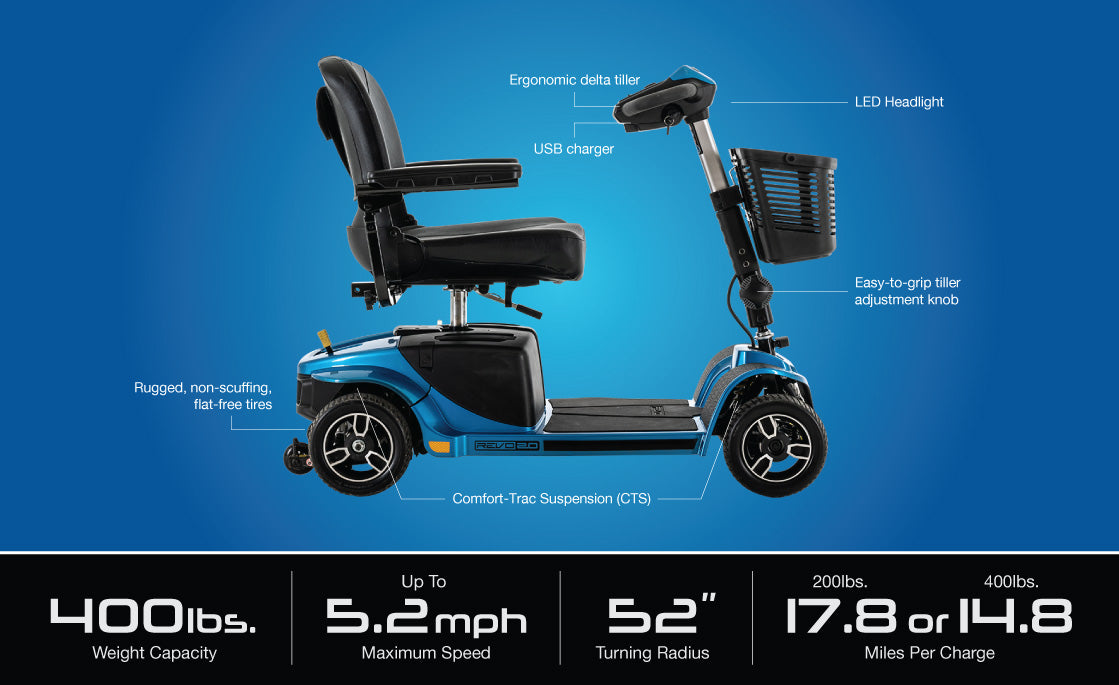

Pride Mobility Revo® 2.0 4-Wheel Mobility Scooter

Robust 400 lb weight capacity
Maximum speed up to 5.2 mph
Exclusive feather-touch disassembly system
Comfort-Trac front and rear suspension
Pride's exclusive non-scuffing, flat-free tires
52-inch turning radius
LED headlight system
USB device charging port
Ergonomic delta tiller
Heavy-duty 70 amp controller
Easily accessible tie-down points
Standard front basket
Comfortable 20"x18" vinyl seat
Available in Grey Street and True Blue

Complete Revo® 2.0 4-Wheel scooter
Compact, foldable black vinyl seat
Two U1 batteries
3.5A off-board charger
Front storage basket
LED lighting system
USB charging port
Manufacturer's warranty documentation
User manual and safety guidelines

Performance Specifications:

Maximum Speed: Up to 5.2 mph
Weight Capacity: 400 lbs
Range per Charge:

Up to 17.8 miles (200 lbs user)
Up to 14.8 miles (400 lbs user)


Turning Radius: 52 inches

Dimensional Specifications:

Length: 47 inches
Width: 20.75 inches
Ground Clearance:

1.25 inches at transaxle
3.5 inches at mid-frame


Seat-to-Ground Height: 22" - 23.5"
Seat-to-Deck Range: 15" - 16.5"

Component Weights:

Total Weight without Batteries: 132 lbs
Total Weight with Batteries: 182 lbs
Heaviest Piece: 57 lbs (front section)
Battery Weight: 25 lbs each

Technical Features:

Tire Size: 3" x 9" solid (front and rear)
Battery Requirements: Two U1 batteries
Charger: 3.5A off-board
Suspension: Front and rear Comfort-Trac
Controller: 70 amp ultra heavy-duty

❓How does the 4-wheel model differ from the 3-wheel version?
The 4-wheel configuration provides enhanced stability for outdoor use, with a slightly larger turning radius of 52 inches compared to the 3-wheel's 40 inches. This makes it particularly well-suited for users who frequently traverse outdoor terrain or prefer additional stability.
❓What makes the feather-touch disassembly system special?
The system allows you to easily separate the scooter into five manageable pieces for transport, with the heaviest section weighing only 57 pounds. Each component is designed to be easily handled and reassembled, making transport and storage more convenient.
❓How effective is the Comfort-Trac suspension system?
The dual front and rear suspension system works in conjunction with the solid, non-scuffing tires to absorb impacts and vibrations from various surfaces, including grass, gravel, and indoor flooring, providing a consistently smooth riding experience.
❓What range can I expect in real-world conditions?
The range varies based on user weight and conditions: up to 17.8 miles for a 200-pound user and up to 14.8 miles for a 400-pound user under ideal conditions. Factors like terrain, temperature, and driving style can affect the actual range.
❓How does the battery charging system work?
The scooter features versatile charging options - batteries can be charged either while installed on the scooter or removed, using the included 3.5A off-board charger. This flexibility allows you to charge your batteries wherever it's most convenient.
❓What makes this scooter suitable for various terrains?
The combination of four-wheel stability, Comfort-Trac suspension, and Pride's exclusive flat-free tires allows the scooter to handle multiple surface types effectively while maintaining user comfort.
❓How easy is it to transport the scooter?
The feather-touch disassembly system, combined with easily accessible tie-down points, provides two convenient transport options: either disassembled into five pieces or secured as a complete unit using appropriate tie-downs.
❓What warranty coverage is provided?
The manufacturer offers a lifetime limited warranty on the frame and 2-year limited coverage on both electronics and drivetrain, providing comprehensive protection for your investment.
